FL01-152 — Plastic Roll Flange 330×330 mm with 6" Plug
FL01-152 — Plastic Roll Flange 330×330 mm with 6" Plug is backordered and will ship as soon as it is back in stock.
The problem
Storing rolls horizontally on the warehouse floor wastes space. Stacking them risks edge damage. Suspending them on hand-built wooden flanges generates dust and lasts a few months.
What's needed is a plastic flange system: light to handle, strong enough to support heavy rolls suspended off the ground, stackable for vertical density, and reusable for years.

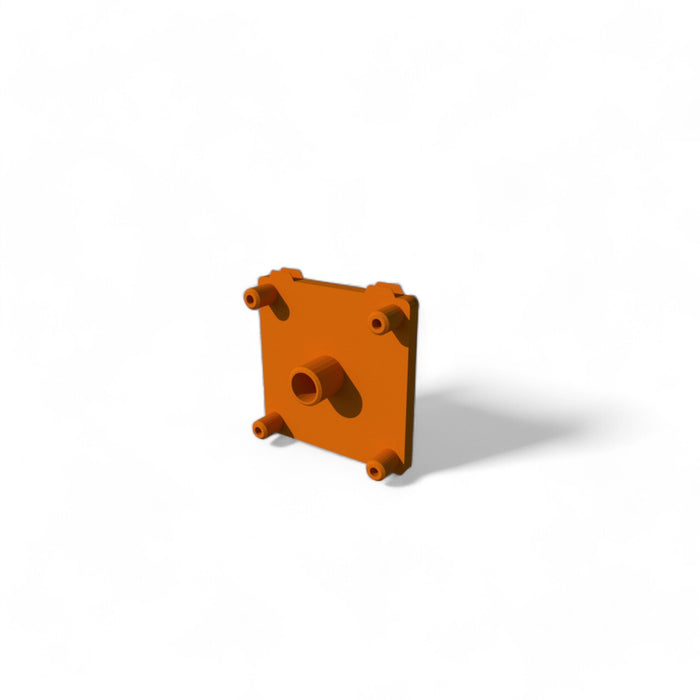

What FL-01-152 is
FL-01-152 — Lightweight 330×330 plastic flange. 6-inch plug (152 mm). Up to 330 mm roll diameter, 150 kg per pair.
Smallest flange model for rolls up to 330 mm diameter, with 76 or 152 mm core fit. Ideal for suspended storage without ground contact, even with heavy rolls. Stackable locking design ensures easy handling, while recycled material provides strength and reusability.
Dimensions: 330×330×30 mm. Weight per unit: 0.802 kg. Material: PP.
Why it works
Suspended roll storage. Lifts rolls off the warehouse floor — protects edges, frees floor space, enables vertical stacking with pallets above.
Load rating 150 kg per pair. Tested suspended-load capacity.
Multi-cycle recycled plastic. Reusable across dozens of cycles. Recyclable in standard polyolefin streams. Replaces wooden flanges and the dust they generate.
Where it fits
FL-01-152 is built for:
- Roll producers shipping packaged film, foil, paper — suspended storage and stacked transport
- Aluminium and metal coil converters — protection of delicate edge layers
- Pharma and food roll packaging — clean alternative to wooden flanges
- Textile roll operations — multi-roll horizontal packaging held together by flanges
This is a variant of the FL-01-76 base model in the same family.
Technical specifications
| Specification | Value |
|---|---|
| Code | FL-01-152 |
| Footprint | 330×330×30 |
| Weight per unit | 0.802 kg |
| Material | PP |
| Color | Black |
| Maximum load capacity | 150 kg |
| Maximum roll diameter | 330 mm |
| Minimum roll diameter | 160 mm |
| Maximum number of rolls | 1 |
| Application | Customer shipping |
| Minimum order quantity | 270 |
| Country of origin | Italy |
| HS code | 3923.90.00 |
Frequently asked questions
Q: How are FL-01-152 flanges installed on a roll?
A: Flanges are pressed onto the core ends, supported by a plug (when included). The flange pair holds the roll suspended off the floor for stacking and storage.
Q: Are flanges reusable?
A: Yes. Plastic flanges are designed for multi-cycle service — typically dozens of cycles in standard handling conditions, much longer than wooden alternatives.
About the ROLL FLANGE series
ROLL FLANGE is the range of plastic solutions designed to package and protect rolls using side flanges. Their purpose is to protect roll edges, enable stacking and keep rolls suspended in horizontal position without contact damage. Highly reusable and durable, they represent the ideal alternative to wooden flanges, improving hygiene, safety and material protection throughout storage and transport.
Technical specification
Dimensions
Key specifications
| Lead time | Made to order — typically 15–17 working days |
| Max roll diameter | 300–400 mm |
| Max roll weight | 150 kg |
| Type of storage | floor or shelves |
| Destination | customer shipping |
| Pieces per pack | 270 |
| Minimum order quantity | 270 |
Lead time to dispatch (ex-works). Transit time not included — groupage delivery may add several working days.
PPWR & compliance — Reg. (EU) 2025/40
| Reusable | Reusable (multi-cycle) |
| Primary material | Plastic |
| Material origin | Recycled standard |
| Recyclable | 5 - PP |
| Substances | No SVHC ≥ 0.1% w/w · heavy metals < 100 ppm |
| PPWR scope | Industrial packaging |
ROLL declares compliance with the applicable requirements of Reg. (EU) 2025/40, as downstream user under REACH, on the basis of supplier documentation and EN 13427–13432.
