KU10-2S — Roll Wedge with Rubber Pads for Plastic Pallets
KU10-2S — Roll Wedge with Rubber Pads for Plastic Pallets is backordered and will ship as soon as it is back in stock.
The problem
Securing rolls on pallets for export has always meant wooden wedges and nails. It works, but it generates four daily problems on the shipping line.
Nails injure operators, damage forklift tyres on the floor, and leave holes in pallets that weaken them over time. Wooden wedges absorb humidity, split, and arrive at destination cracked. ISPM 15 phytosanitary treatment is mandatory for export wood, adding cost and lead time.
Plastic wedges that grip without nails — patented, sub-€2, recycled material — replace wood for good.
What KU10-2S is

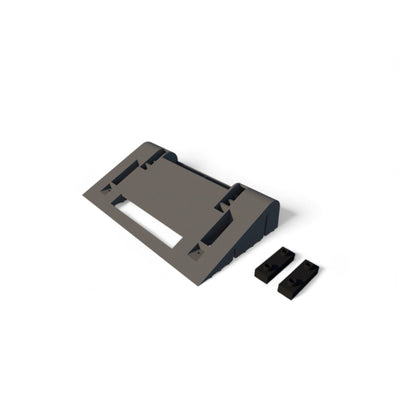

KU10-2S — KU10 with 2 rubber pads pre-mounted. Grips plastic pallet surfaces. Same patented design.
Highly innovative, safe and cost-effective roll chock. Ideal for replacing wood and nails in shipments thanks to low cost, strong grip on cardboard and easy positioning, while allowing pallet recovery after use. Also perfect for internal handling with rubber pads (KU10-2S). Modular, easy to handle and patented.
Dimensions: 260×150×50 mm. Weight per unit: 0.26 kg. Material: Recycled PP + rubber pads.
Why it works
Patented nail-free fixation. Friction teeth on the bottom grip soft surfaces under load. No tools, no fasteners, no risk of injury on the shipping line.
Economy unit cost. Sub-€2 per wedge (€2.49 current list price). Lower total cost than ISPM 15 treated wooden wedges including labour.
Recycled PP material. Manufactured from recycled polypropylene. Recyclable in standard polyolefin streams. No phytosanitary treatment required for international shipping.
Where it fits
KU10-2S is built for:
- Roll producers shipping internationally — film, paper, foil, textile exporters who replace wooden wedges
- Converters who don't recover packaging — one-way logistics where wedges stay with the customer
- Internal warehouse handling — reusable wedges for daily intra-plant moves (premium version with rubber pads)
- Operations replacing wood and nails for safety reasons — clean lines, no splinters, no operator injuries
This is a variant of the KU10 base model in the same family.
Technical specifications
| Specification | Value |
|---|---|
| Code | KU10-2S |
| Footprint | 260×150×50 |
| Weight per unit | 0.26 kg |
| Material | Recycled PP + rubber pads |
| Color | Black |
| Maximum load capacity | 1500 kg |
| Maximum roll diameter | 1200 mm |
| Minimum roll diameter | 160 mm |
| Hygiene rating | 4/5 |
| Application | Customer shipping |
| Minimum order quantity | 156 |
| Country of origin | Italy |
| HS code | 3923.90.00 |
Frequently asked questions
Q: How many wedges do I need per roll?
A: Standard configuration is two wedges per roll, one on each side. For heavier or larger-diameter rolls, contact ROLL for a configuration recommendation.
Q: Does KU10-2S require phytosanitary treatment for export?
A: No. KU10-2S is plastic and is not subject to ISPM 15 phytosanitary regulations that apply to wooden packaging materials. This saves treatment cost and lead time.
Q: Is KU10-2S reusable?
A: Designed primarily for one-way shipping, but it survives 2-3 cycles in mild handling conditions. For multi-cycle internal warehouse use, see the KU04 series with rubber pads.
About the ROLL KUNEO series
ROLL KUNEO is the range of plastic roll chocks designed as a true alternative to wood and nails. Available in different lengths and thicknesses, they meet both internal handling and final packaging requirements. Their strength lies in easy positioning, quick removal and advanced grip systems based on dedicated technical solutions such as teeth, rubber pads and anchoring geometries. ROLL KUNEO supports the replacement of wood in warehouses, improving hygiene, safety and long-term reusability.
Technical specification
Dimensions
Key specifications
| Lead time | In stock — ships in 5–7 working days |
| Max roll diameter | Over 600 mm |
| Max roll weight | 1500 kg |
| Type of storage | floor or shelves |
| Destination | customer shipping |
| Pieces per pack | 624 |
| Minimum order quantity | 624 |
Lead time to dispatch (ex-works). Transit time not included — groupage delivery may add several working days.
PPWR & compliance — Reg. (EU) 2025/40
| Reusable | Single-use (one-way) |
| Primary material | Mixed |
| Material origin | Recycled standard |
| Recyclable | 5 - PP |
| Substances | No SVHC ≥ 0.1% w/w · heavy metals < 100 ppm |
| PPWR scope | Industrial packaging |
ROLL declares compliance with the applicable requirements of Reg. (EU) 2025/40, as downstream user under REACH, on the basis of supplier documentation and EN 13427–13432.
